Technical Specifications
Microchip VP2206N3-G technical specifications, attributes, and parameters.
| Supply Chain | |
|---|---|
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Physical | |

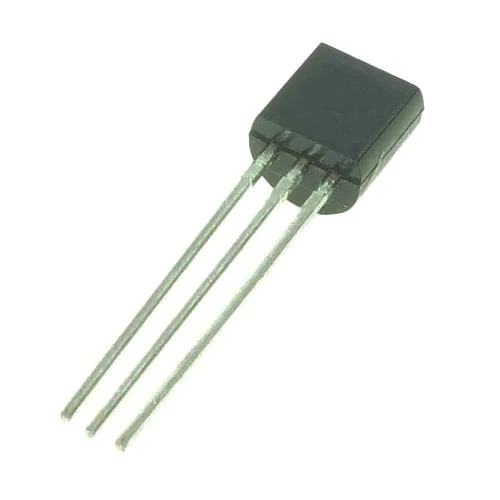

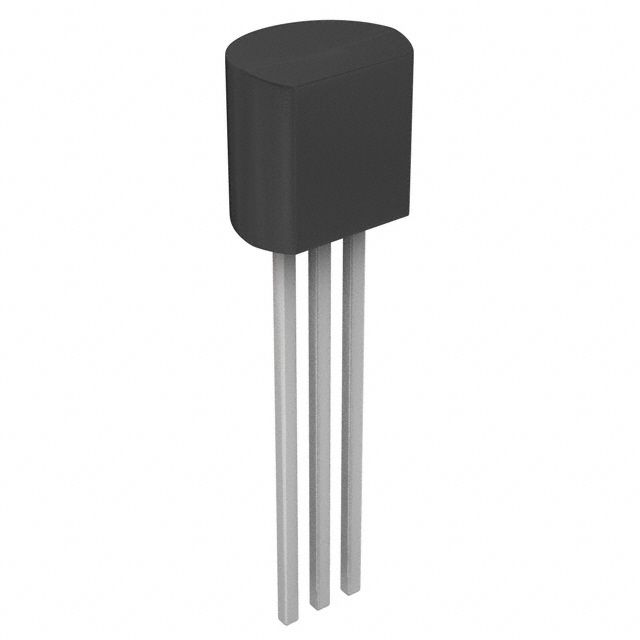

| Case/Package | TO-92 |
| Mount | Through Hole |
| Number of Pins | 3 |
| Weight | 453.59237 mg |
| Technical | |
| Continuous Drain Current (ID) | 640 mA |
| Drain to Source Breakdown Voltage | -60 V |
| Drain to Source Resistance | 900 mΩ |
| Drain to Source Voltage (Vdss) | 60 V |
| Element Configuration | Single |
| Fall Time | 22 ns |
| Gate to Source Voltage (Vgs) | 20 V |
| Input Capacitance | 450 pF |
| Max Operating Temperature | 150 °C |
| Max Power Dissipation | 740 mW |
| Min Operating Temperature | -55 °C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Packaging | Bulk |
| Power Dissipation | 1 W |
| Rds On Max | 900 mΩ |
| Rise Time | 16 ns |
| Schedule B | 8541210080, 8541210080|8541210080, 8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080 |
| Turn-Off Delay Time | 16 ns |
| Turn-On Delay Time | 4 ns |
| Dimensions | |
| Height | 5.33 mm |
| Length | 5.21 mm |
| Width | 4.19 mm |
| Compliance | |
| Radiation Hardening | No |
| RoHS | Compliant |
