Technical Specifications
Microchip TP2540N8-G technical specifications, attributes, and parameters.
| Supply Chain | |
|---|---|
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Physical | |

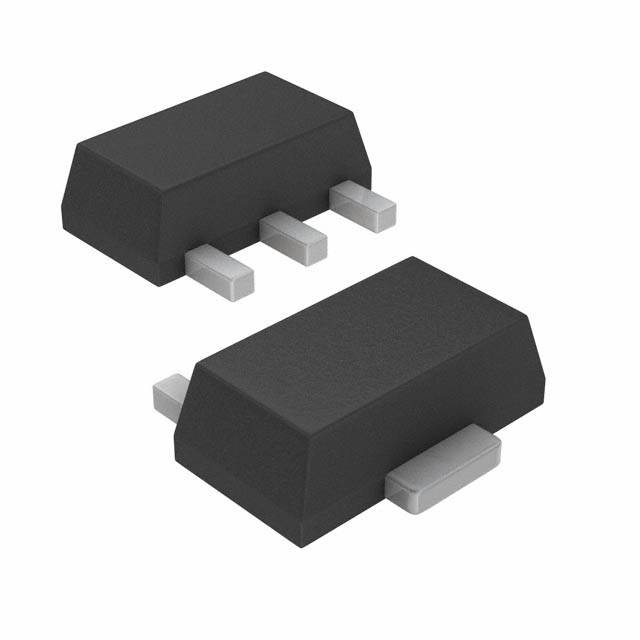

| Case/Package | SOT-89 |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Number of Pins | 4 |
| Weight | 52.786812 mg |
| Technical | |
| Ambient Temperature Range High | 150 °C |
| Continuous Drain Current (ID) | -125 mA |
| Drain to Source Breakdown Voltage | -400 V |
| Drain to Source Resistance | 20 Ω |
| Drain to Source Voltage (Vdss) | -400 V |
| Element Configuration | Single |
| Fall Time | 10 ns |
| Gate to Source Voltage (Vgs) | 20 V |
| Input Capacitance | 125 pF |
| Max Operating Temperature | 150 °C |
| Max Power Dissipation | 1.6 W |
| Min Operating Temperature | -55 °C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Power Dissipation | 1.6 W |
| Rds On Max | 25 Ω |
| Rise Time | 10 ns |
| Schedule B | 8541290080 |
| Turn-Off Delay Time | 20 ns |
| Turn-On Delay Time | 10 ns |
| Dimensions | |
| Height | 1.6 mm |
| Length | 4.6 mm |
| Width | 2.6 mm |
| Compliance | |
| RoHS | Compliant |
